3D body scanning has revolutionized how we visualize fitness progress. Using optical technologies to map physical contours, 3D scanners capture surface-level data to create a high-resolution, 360-degree virtual avatar of your body. These digital twins highlight changes in body shape, posture, and circumference measurements over time.
But what about the changes happening beneath the surface? When evaluating muscle gains versus fat loss, exact body fat percentage, and bone density, how does a 3D optical scan compare to a clinical standard like a Dual-Energy X-ray Absorptiometry (DEXA) scan?
While both methods help track body changes, they capture fundamentally different types of data. Here is a breakdown of 3D body scanning, how it works, and how it compares to the gold-standard DEXA scan for analyzing body composition.
Pairing DEXA with Body Composition
Learn how BodySpec DEXA scans can help if you're tracking body composition.
Book a BodySpec DEXA scan today and see exactly how your body composition changes over time.
How 3D Body Scanning Works
The primary purpose of a 3D body scanner is to track external dimensions. Unlike traditional weight scales, which only provide a single ambiguous number, 3D scanners estimate body volume, highlight postural shifts, and track specific circumference measurements across the arms, waist, and thighs.
Most commercial 3D scanners, such as those found in fitness centers, use one of the following methods to map the body's surface:
- Structured Light: The scanner projects a patterned light grid onto the body. Cameras record how the pattern warps over the body’s contours to construct a detailed 3D shape.
- Time-of-Flight (LiDAR): The scanner uses infrared lasers to measure the exact time it takes for light to bounce off the body and return to the sensor, creating a precise physical map.
- Photogrammetry: Some newer mobile and AI-based apps stitch together multiple 2D photos to predict a 3D model.
Many 3D scanning systems use these external body measurements, combined with demographic data like height and weight, to estimate body fat percentage using predictive algorithms (Guarnieri Lopez et al., 2023).
DEXA Scan: The Core Differences

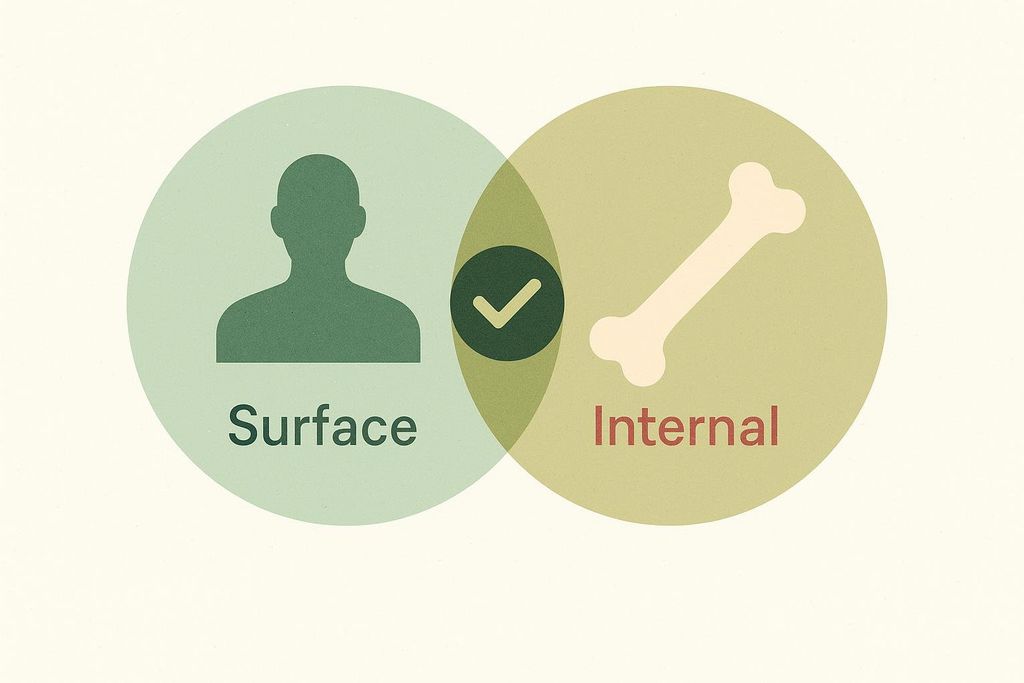

While 3D body scanners map the outside of the body, a DEXA scan directly measures the inside.
DEXA (Dual-Energy X-ray Absorptiometry) uses two very low-dose X-ray beams to safely scan the entire skeleton and soft tissue. Because fat, muscle, and bone absorb X-rays at different known rates, the DEXA scanner can definitively separate and quantify these distinct tissues.
This technological difference produces several significant variations in the data each scan provides:
1. Direct Measurement vs. Algorithmic Estimation

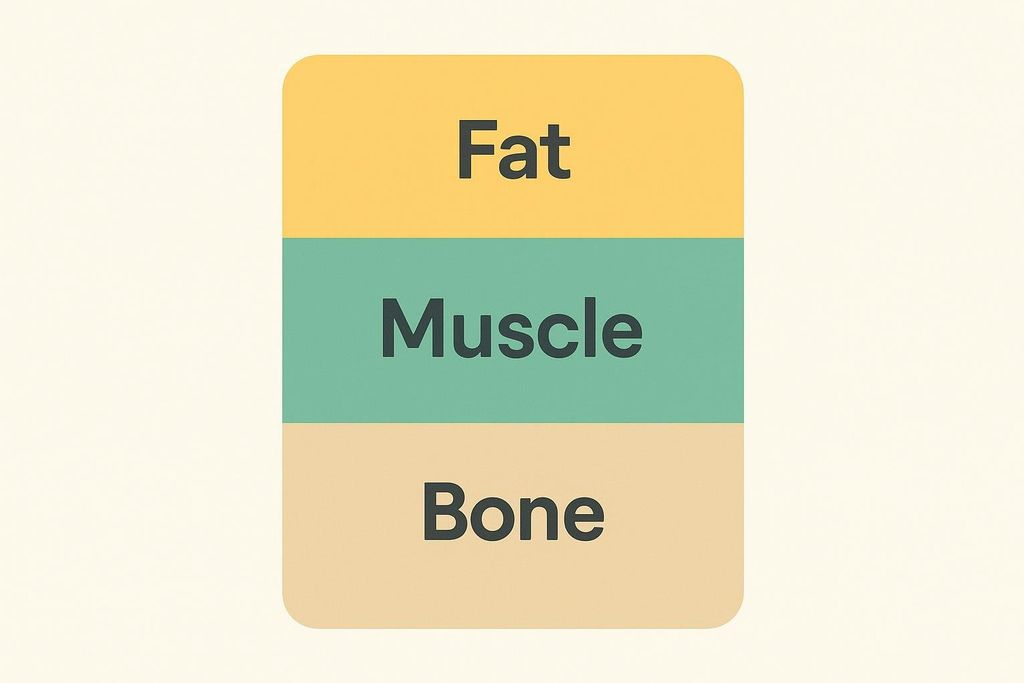

A DEXA scan directly measures three specific components: fat mass, lean mass (muscle), and bone mineral content. It does not estimate your body fat based on your waist size; it actively calculates the exact mass of fat tissue present in the scan.
In contrast, a 3D optical scanner cannot see through the skin. To provide a body fat percentage, the scanner's software must run your external measurements through predictive algorithms. Guarnieri Lopez et al. (2023) found that while these estimations can be helpful for tracking physical changes, their predictive accuracy can vary significantly depending on demographic factors like sex and age.
2. Visceral Fat Detection

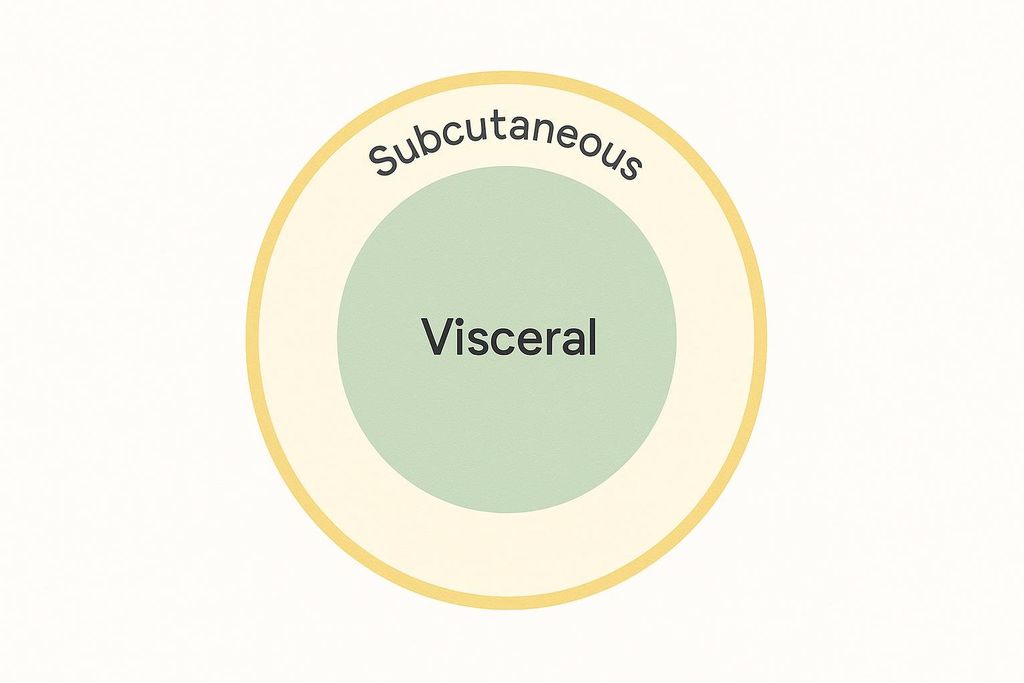

Not all fat carries the same health implications. Subcutaneous fat lies just under the skin (the type you can pinch), while visceral fat wraps around internal organs like the liver and heart. High levels of visceral fat are strongly linked to metabolic syndrome and cardiovascular disease, making it a well-established risk factor for future cardiac issues (Cleveland Clinic, 2024).
Because 3D scanners only capture surface data, they cannot directly measure visceral fat. A DEXA scan estimates visceral adipose tissue (VAT) volume and mass, offering useful metabolic insight (Murata et al., 2022). However, it has accuracy limitations, particularly in individuals with larger body mass or high visceral fat volume, where it may overestimate VAT relative to MRI.
3. Bone Density Analysis
One of the most significant advantages of a DEXA scan is its ability to measure bone mineral density. This makes DEXA a vital tool for screening osteoporosis and tracking skeletal changes as you age or modify your diet and training.
Diagnostic bone density DEXA (which assesses the hip and spine for conditions like osteoporosis or osteopenia) requires a medical referral. While routine screening is generally recommended for women aged 65 and older, diagnostic DEXA remains accessible to younger individuals who present with specific medical indications or health risk factors. Whole-body composition DEXA, like the scans offered by BodySpec, isn't a replacement for diagnostic screening, but it provides whole-skeleton bone data alongside body composition metrics. It requires no referral, is repeatable anytime, and typically costs $40-$60 per scan. Learn more about the difference between whole-body composition and diagnostic bone density scans.
Interested in a DEXA scan? See BodySpec's Options
3D body scanners offer no insight into bone health.
4. Regional Body Composition
Both scans offer localized data, but in different forms. A 3D scan report will tell you that you lost two inches around your thighs. A DEXA scan report will tell you exactly how much fat was lost and how much lean muscle was gained in those specific regions.
This makes DEXA an incredibly powerful tool for tracking the nuances of body recomposition, where simultaneous fat loss and muscle gain might leave your overall circumferences unchanged. DEXA also helps users identify and correct muscular imbalances by highlighting left-to-right body asymmetries.
Comparing Accuracy and Precision
When tracking body composition, precision is vital. You need to know that changes on the report reflect accurate physiological shifts, not just an error in the machine.
DEXA represents a gold standard in body composition analysis. The rigorous clinical nature of a DEXA scan results in a highly reproducible level of accuracy. DEXA is a precise, stable method with measurement stability verified at better than 1% over time (Shepherd et al., 2017). Furthermore, BodySpec's strict QA procedure and accuracy guidelines limit the margin of error to +/-0.5%.
3D body scanning, particularly high-end systems using infrared or structured light, shows exceptional precision for circumference measurements. Some AI-powered 3D scanner distributors claim up to 96-97% precision for extracting body dimensions (3DLook, 2025). It is important to note that this figure represents a vendor's internal claim rather than data verified by peer-reviewed clinical research. Furthermore, the accuracy of their body composition estimates (fat versus muscle) relies entirely on how well the user fits the predictive algorithm.
If you are highly muscular or carry fat in atypical patterns, a 3D scanner's body fat percentage estimation may differ significantly from true diagnostic tools like DEXA.
Which Scan Is Right For You?
Choosing between a 3D body scan and a DEXA scan depends entirely on the data you need to reach your goals. In many cases, it may be beneficial to use both tools in tandem. For example, getting a DEXA every three months provides accurate benchmark body composition data, while 3D scans can be used more frequently for visual trend tracking between clinical appointments.
Choose a 3D Body Scan if:
- You want visual validation of your fitness progress.
- Tracking external size changes (inches lost) is your primary motivation.
- You need regular, frequent motivation tools (many gyms offer free or low-cost 3D scanning to members).
- You want to track postural shifts or need precise measurements for custom clothing.
Choose a DEXA Scan if:
- You require clinical-grade precision for tracking fat mass and muscle gains.
- You want to gain insight into visceral fat levels for metabolic health tracking.
- You are actively engaged in body recomposition and need to track simultaneous muscle gain and fat loss.
- You are an athlete monitoring left/right muscular imbalances for performance or rehab.
- You want to assess your bone mineral density and long-term skeletal health.
While a 3D body scan provides an excellent visual representation of your hard work, when you need the complete clinical picture of your body's true composition, DEXA remains unmatched.
